Hardware
CPU：Amlogic S905Y4-B quad-core 64-bit Arm Cortex-A35
GPU：Processor with Mali-G31 MP2 GPU
RAM：2G DDRIII
ROM：32G EMMC
Video Decode：HW UHD H.265/VP9 60fps 10-bit, 4K AV1 60fps, 4K AV1 60fps 10-bit video decoder; HDR 10, HDR 10+ and HLG video processing
Audio Decode：Supports MP3, AAC,WMA,RM,FLAC,Dolby AC3 EAC3 AC4 Audio Optional,and programmable with 7. 1/5.1 down-mixing

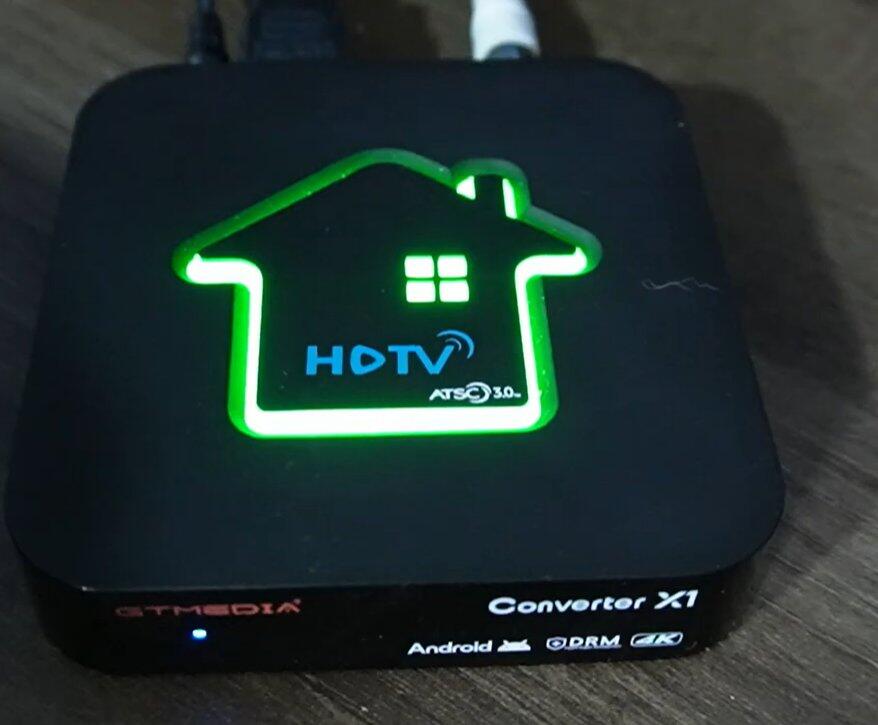

LED Indicator：Power ON :Blue; Standby :Red ; IR LED:Blue
Wifi：Built in 2.4G 5G WiFi Support IEEE 802.1.1b/g/n/ac
BT：Support Bluetooth 5.0
IR：Exit IR for 38KHz,Infra Remote control
Rear Panel：
1*ANT IN ( EC-type IEC169-2 Female)
1*HDMI 2.1 (4K@60fps)
1*USB 2.0 HOST
1*RJ45
1*DC IN (DC5V/2A)
QAM-B（Clear QAM）specifications
Frequency Range： Ch 2---36 （57Mhz~~~605Mhz)
Search mode：Full Channel Scan
ATSC-T specifications
Frequency Range：6MHz channel bandwidths Ch 2---36 （57Mhz~~~605Mhz)
Country：United States, Mexico, Canada, South Korea,Jamaica,India, Brazil
HDTV Player Software Features
Standard：Fully compatible with ATSC digital TV standard, Clear UHD/HD picture and easy to install and use.
Channels Number：20000+ channels TV and Radio programmable
Channel：Recording one channel, can view another channel under the same TP,
DRM Channel：Supports Support ATSC3.0 DRM Channel play
DVR：USB Disk
EPG：Fully support to 7 days Electronic Program Guide(EPG)

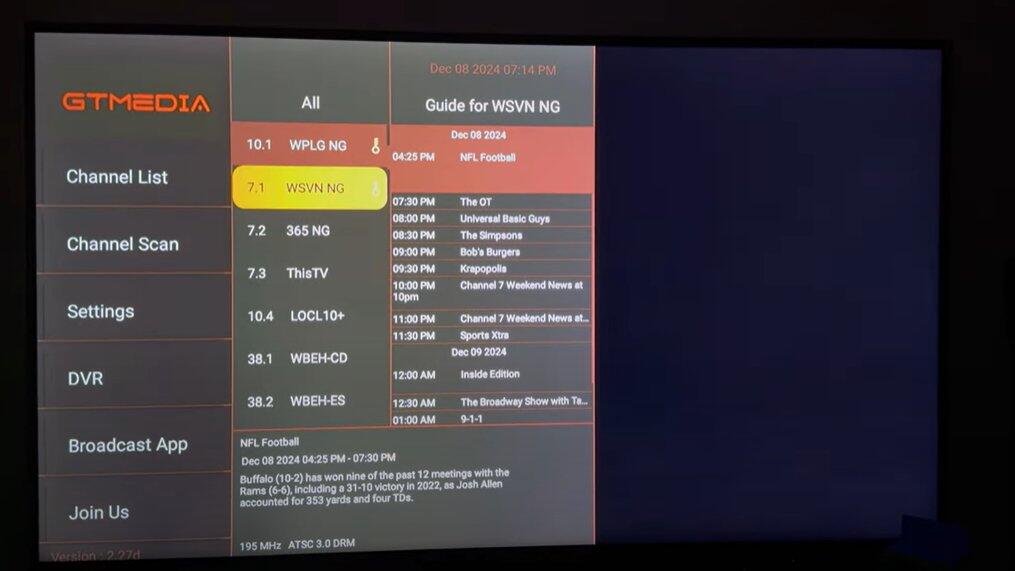

Easy Menu：An easy to use Menu System with Introduction&Guide
Channel List：Program + EPG full screen display
Channel Search：Full Channel Scan，Adaptive Channel Scan，Manual Channel Scan
Settings：Hide/Show Channels,Time Settings,Captions,Audio,Restore Settings,lntroduction Setting,About
Broadcast App：Supports ATSC3.0 channel broadcast ，Video, photo, news, weather
Subtitle：Closed Captioning (CC)
Time Set：Time set by Network or Broadcast
Software Upgrade：Software upgrades through online or USB Disk
Sortware Features
O.S.：Android 11 TV BOX
3D Graphics：OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0 support
5D Graphics Processor：Supports multiple video formats 4:2:0, 4:2:2 and 4:4:4 and multiple pixel
Video/Picture Decoding：
-AV1 MP-10@L5.1 up to 4Kx2K@60fps
-VP9 Profile-2 up to 4Kx2K@6Ofps
-H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
-AVS2-P2 Profile up to 4Kx2K@6Ofps
-H.264 AVC HP@L5.1 up to 4Kx2K@30fps
-MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
-WMV/VC-1 SP/MP/AP up to 1080P@60fps
-AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
-MPEG-2 MP/HL up to 1080P@6Ofps (ISO-13818)
-MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
-Multiple language and multiple format sub-title video support
-MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
-Supports JPEG thumbnail, scaling, rotation and transition effects
-Supports *.mkv,*.wmv,* .mpg, *.mpeg, *.dat, *.avi, * .mov; *.iso, *.mp4, *.m and *.jpg file formats"
Audio Support：AC3, AC4, MP3, AAC, WMA, RM, FLAC, DTS etc.
OSD Language：English/French/German/Spanish/Italian etc. 24 languages
OSD Color：32-bits OSD with anti-flickering
Easy Menu：Plug and Play installation, with an easy to use Menu System
DLNA：DLNA files sharing
Network Functions：HDTV player，Google Play，YouTube. Prime Video. Disney+. Netflix. Miracast. Media center. gtstore. AptoideTV.,etc.
Other feature：Free Internet searching,thousands of android applications,many kinds of games,etc.
SoftUpgrade：Software upgrades through USB port or OTA.
Time Set：Time set by GMT offset automatic and manual,Summer Time support
Physicals
Power Supply：AC IN100-250V, DC 5V/2000mAh
Power Consumption：6W in operation, ≦1 W Standby Power Mode
Temperature：Operation 0～+45℃; Storage -10~+60℃
Humidity：20~90%, non-condensed
